    Reciprocating Compressors

    Industrial-Duty Compressors

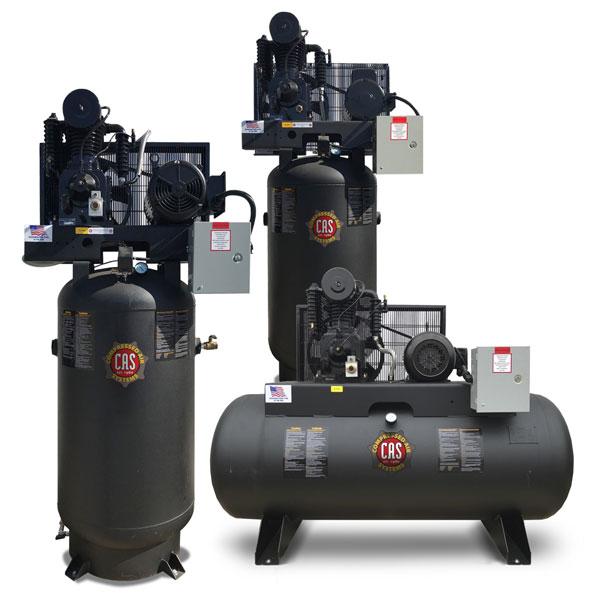

    7.5 HP Industrial-Duty Electric Compressors

    Industrial duty icon portable icon

    The CAS Industrial Series reciprocating compressors are designed for heavy commercial and industrial applications. Low rpm pumps provide reliable air for your applications and are manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today.

    CAS Elite Series compressors feature a unique option package that makes our compressors simpler to maintain while delivering higher quality air.

    • Features
    • 24 cfm @ 175 psi
    • No Start-Up Kit Required
    • Optional 5-Year Pump Warranty
    • Access to compressor valves without compressor head removal
    • All UL electrical controls
    • ASME tested powder coated steel tank
    • Auto start stop
    • Bearings on both ends of the crank shaft
    • Centrifugal unloader
    • Disk and spring valves
    • Fully enclosed belt guard
    • Heavy-duty air filter
    • Heavy-duty two stage solid cast iron pump
    • Industrial grade electric motor
    • Magnetic starter mounted and wired
    • Needle bearings, and inserts on rods
    • Stainless steel flex air lines
    • Swedish steel valves
    • TEFC drive motor (3 phase only)
    • Torrington needle bearings
    • 2-grove B width motor pulley
    • 2-piece tank top plate design
    • Elite Model Features
    • All basic features
    • Automatic tank drain
    • Belt guard after cooler
    • Low oil monitor
    • Tank discharge ball valve
    • Vibration pads
    • Freight pre-paid in the 48 states & southern Canada
    Elite Aftercooler
    Air-cooled aftercooler on all Elite units
    7.5hp-ind-elec
    Model Phase Voltage Tank Length Width Height Amp Draw 230 Volt Amp Draw 480 Volt
    B71V84 1 208-230 80 Gallon Vertical 32 26 78 32 N/A
    B73V84 3 208-230-460 80 Gallon Vertical 32 26 78 18 9
    B71H84 1 208-230 80 Gallon Horizontal 63 24 45 32 N/A
    B73H84 3 208-230-460 80 Gallon Horizontal 63 24 45 18 9
    B71V124 1 208-230 120 Gallon Vertical 42 34 84 32 N/A
    B73V124 3 208-230-460 120 Gallon Vertical 42 34 84 18 9
    B71H124 1 208-230 120 Gallon Horizontal 70 26 45 32 N/A
    B73H124 3 208-230-460 120 Gallon Horizontal 70 26 45 18 9
    Add -E after model number to make Elite Model
