Reciprocating Compressors

Combination Packages

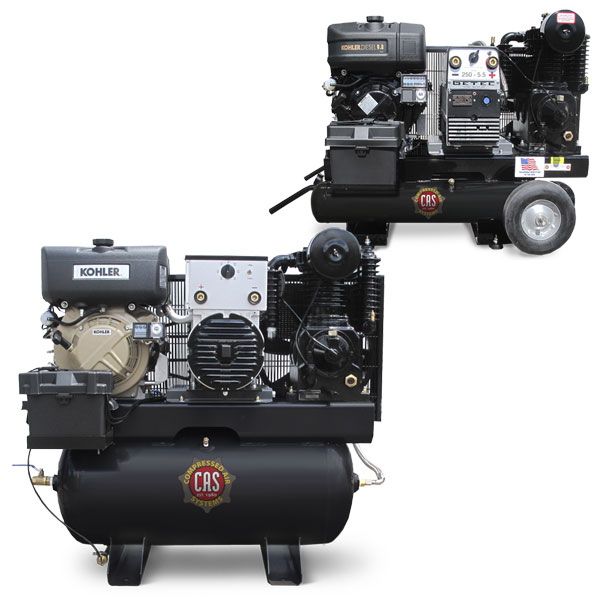

16 cfm Diesel Compressor/Generator/Welder

Industrial duty icon portable icon Engine Driven Icon generator icon

CAS Industrial-duty gas and diesel compressors are designed for applications that require air on the go. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. The unloader is at your finger tips so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver for safety.

With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

16 cfm Diesel Compressor/Generator/Welder
  • Features
  • 16 cfm @ 175 psi
  • 210 amp welders
  • 5000 Watt Generator
  • No Start-Up Kit Required
  • Optional 5-Year Pump Warranty
  • Access to compressor valves without compressor head removal
  • Alternator on drive engine
  • ASME tested powder coated steel tank
  • Bearings on both ends of the crank shaft
  • Centrifugal unloader
  • Critical controls protected by compressor base plate
  • Disk and spring valves
  • Drive engine on left side for safety
  • Fully enclosed belt guard
  • Full saddle mounting feet instead of pegged mounting feet
  • Heavy-duty air filter
  • Heavy-duty two-stage solid cast iron pump
  • Industrial-duty engine
  • Needle bearings, and inserts on rods
  • Pilot valve continuous operation
  • Stainless steel flex lines
  • Swedish steel valves
  • Torrington needle bearings
  • 2-groove B width drive pulley
  • Generator/Welder Features
  • 120/220 volt outlets
  • 41 amps @ 120 volt
  • 20 amps @ 240 volt
  • Options
  • Engine control extension
  • Filter Regulator
  • Front mount battery
  • Heavy-duty marine-grade battery
Model HP mount Tank Drive Engine Length Width Height Weight
C110GED34-GWE 10 Tank 30 Gallon Kohler Diesel 44 23 44 575
P110GED8-4-GWE 10 Tank 8 Gallon Kohler Diesel 46 26 30 575
