    Compressed Air Systems
    Simplicity. It's What We Do.

    Reciprocating Compressors

    Combination Packages

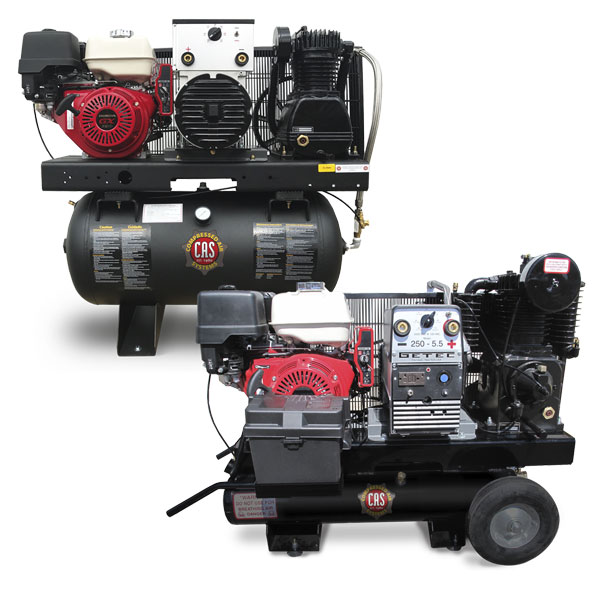

    19 cfm Compressor/Generator/Welder

    Industrial duty icon portable icon Engine Driven Icon Combo icon

    CAS Industrial-duty gas and diesel compressors are designed for applications that require air on the go. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. The unloader is at your finger tips so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver for safety.

    With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

    19 cfm Compressor/Generator/Welder
    • Features
    • 19 cfm @ 175 psi
    • 5500 Watt Generator
    • No Start-Up Kit Required
    • Optional 5-Year Pump Warranty
    • Access to compressor valves without compressor head removal
    • Alternator on drive engine
    • ASME tested powder coated steel tank
    • Bearings on both ends of the crank shaft
    • Centrifugal unloader
    • Critical controls protected by compressor base plate
    • Disk and spring valves
    • Drive engine on left side for safety
    • Fully enclosed belt guard
    • Full saddle mounting feet instead of pegged mounting feet
    • Heavy-duty air filter
    • Heavy-duty two-stage solid cast iron pump
    • Industrial engine
    • Needle bearings, and inserts on rods
    • Pilot valve continuous operation
    • Swedish steel valves
    • Torrington needle bearings
    • 2-grove B width drive pulley
    • Generator/Welder Features
    • 110/220 volt outlets
    • 41 amps @ 120 volt}
    • 20 amps @ 240 volt}
    • Automatic tank drain
    • Belt guard aftercooler
    • On-board battery mounted and wired (No truck wiring needed)
    • Tank discharge ball valve
    • Vibration pads
    • Freight pre-paid in the 48 states & southern Canada
    Elite Aftercooler
    Air-cooled aftercooler on all Elite units
    Model HP Mount Tank Drive Engine Length Width Height Weight
    P140GEC8-GWE 13 Tank 8 Gallon Horizontal Honda Electric Start 46 26 30 550
    P130GEH8-GWE 14 Tank 8 Gallon Horizontal Honda Electric Start 46 26 30 550
    C130GEH34-GWE 13 Tank 30 Gallon Horizontal Honda Electric Start 46 26 42 550
    C140GEC34-GWE 14 Tank 30 Gallon Horizontal Kohler Electric Start 46 26 42 550
    BMC130GEH34-GWE 13 Base 30 Gallon Horizontal Honda Electric Start 46 26 42 550
    BMC140GEC34-GWE 14 Base 30 Gallon Horizontal Kohler Electric Start 46 26 42 550
