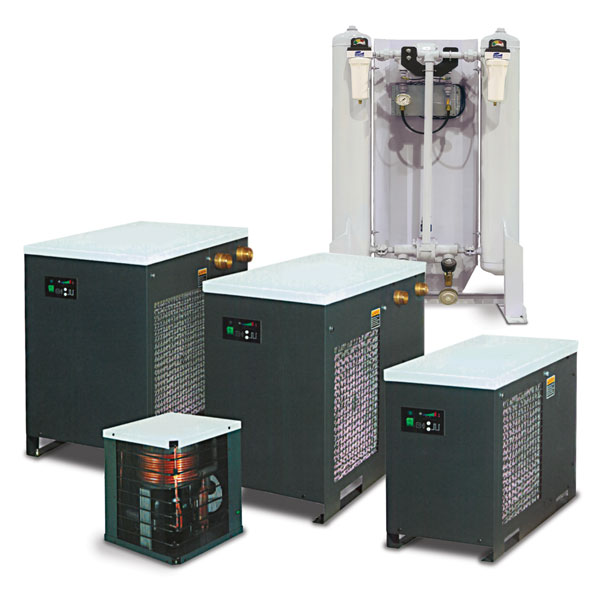

Air Dryers

Refrigerated Dryers

Refrigerated dryers work by cooling the air to low temperatures and condensing much of the water vapor. It is not possible to achieve dew points below freezing with a refrigerated dryer. Optimally designed refrigerated dryers can produce air with dew points to approximately 36°F (2°C). Since some water vapor is left in the air, these dryers should not be used in water sensitive applications.

All Compressed Air Systems Line of air dryers are simple to operate and install like our compressors. They use standard size inlet and outlet fittings with standard pipe thread.

Desiccant Dryers

Desiccant dryers pass the compressed air over a bed of desiccant material which absorbs water vapor molecules. Desiccant dryers can deliver air at consistently low dew points, typically -40°F/°C or less. Desiccant dryers are a good choice when the compressed air is subject to freezing conditions.

Refrigerated Dryers

Model	Length Inches	Width Inches	Height Inches	CFM @ 100F Inlet	CFM @ 120 Deg Inlet	Max Inlet Temp	Voltage	Weight	Electronic Auto Drain	Refrigerant	Inlet/Outlet Size	Dew Point
RD10	13	13	15	10	8.8	120F	115	64	(Float)	R134a	3/4	38F
RD15	13	13	15	15	13.2	120F	115	69	Yes	R134a	3/4	38F
RD25	15	15	22	25	22	120F	115	88	Yes	R134a	3/4	38F
RD35	15	15	22	35	30.8	120F	115	92	Yes	R134a	3/4	38F
RD50	20	20	22	50	44	120F	115	101	Yes	R134a	3/4	38F
RD75	19	21	20	75	66	120F	115	110	Yes	R134a	3/4	38F
RD100	13	30	21	100	88	120F	115	123	Yes	R134a	1	38F
RD125	13	30	21	125	110	120F	115	133	Yes	R134a	1	38F
RD150	13	30	21	150	132	120F	115	153	Yes	R134a	1	38F
RD200	17	36	30	200	176	120F	480/3	183	Yes	R134a	1 1/2	38F
RD250	17	36	30	250	220	120F	480/3	211	Yes	R134a	1 1/2	38F
RD300	20	38	30	300	264	120F	480/3	218	Yes	R134a	1 1/2	38F
RD400	21	38	30	400	352	120F	480/3	232	Yes	R134a	2	38F
RD500	25	41	32	500	440	120F	480/3	262	Yes	R134a	2	38F
RD600	36	27	55	600	528	120F	480/3	295	Yes	R134a	3	38F
RD750	36	27	55	750	660	120F	480/3	306	Yes	R134a	3	38F
RD1000	36	27	55	1000	880	120F	480/3	306	Yes	R134a	3	38F

Twin Tower Desiccant Dryers

Model	Length Inches	Width Inches	Height Inches	cfm @ 100 Deg Inlet	cfm Req.for Max Operation	Max Inlet Temp	Voltage	Weight	Purge	Inlet/Outlet	Dew Point 10 Min. Cycle	Dew Point 4 Min. Cycle	Energy Efficent Model
HCT-40	32	32	46	40	46	120F	115	365	6CFM	1	-40	-100	No
HCS-40	32	32	46	40	46	120F	115	365	6CFM	1	-40	-100	Yes
HCT-60	32	32	61	60	69	120F	115	445	9CFM	1	-40	-100	No
HCS-60	32	32	61	60	69	120F	115	445	9CFM	1	-40	-100	Yes
HCT-90	32	32	78	90	103	120F	115	575	13CFM	1	-40	-100	No
HCS-90	32	32	78	90	103	120F	115	575	13CFM	1	-40	-100	Yes
HCT-115	38	44	54	115	132	120F	115	685	17CFM	1	-40	-100	No
HCS-115	38	44	54	115	132	120F	115	685	17CFM	1	-40	-100	Yes
HCT-165	38	44	54	165	189	120F	115	685	24CFM	1	-40	-100	No
HCS-165	38	44	54	165	189	120F	115	685	24CFM	1	-40	-100	Yes
HCT-260	38v	48	72	260	298	120F	115	1010	38CFM	2	-40	-100	No
HCS-260	38	48	72	260	298	120F	115	1010	38CFM	2	-40	-100	Yes
HCT-370	38	55	63	370	424	120F	115	1215	54CFM	2	-40	-100	No
HCS-370	38	55	63	370	424	120F	115	1215	54CFM	2	-40	-100	Yes
HCT-450	38	55	71	450	515	120F	115	1350	65CFM	2	-40	-100	No
HCS-450	38	55	71	450	515	120F	115	1350	65CFM	2	-40	-100	Yes
HCT-590	48	52	101	590	675	120F	115	1473	85CFM	2	-40	-100	No
HCS-590	48	52	101	590	675	120F	115	1473	85CFM	2	-40	-100	Yes
HCT-750	48	54	104	750	858	120F	115	2134	108CFM	2	-40	-100	No
HCS-750	48	54	104	750	858	120F	115	2134	108CFM	2	-40	-100	Yes
HCT-930	56	59	109	930	1064	120F	115	2414	134CFM	2	-40	-100	No
HCS-930	56	59	109	930	1064	120F	115	2414	134CFM	2	-40	-100	Yes
HCT-1130	56	63	112	1130	1293	120F	115	2875	163CFM	3	-40	-100	No
HCS-1130	56	63	112	1130	1293	120F	115	2875	163CFM	3	-40	-100	Yes
