Reciprocating CompressorsCube Air System

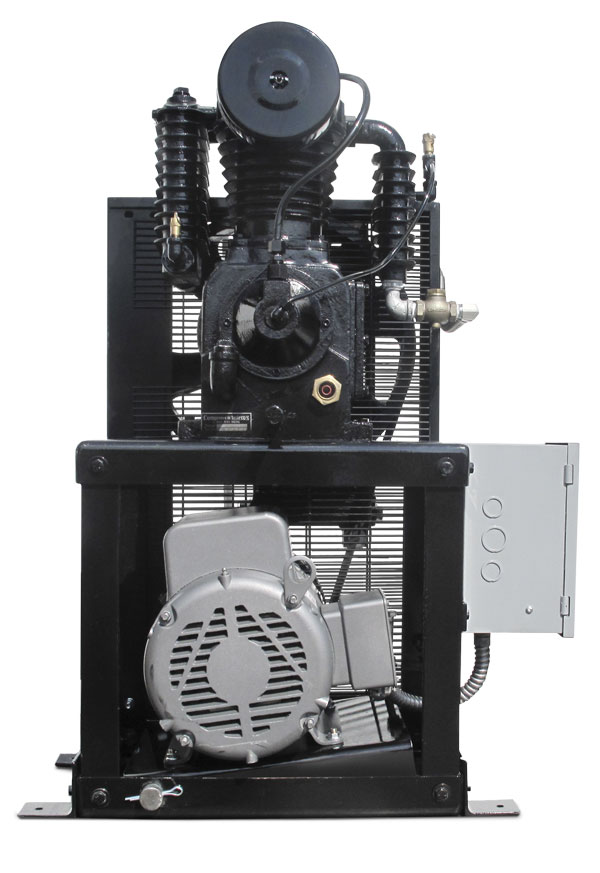

7.5 HP Heavy-duty Reciprocating Cube
The CAS Cube Air System is the simplest to purchase, own, and operate compressor in the world. The Cube Air System allows you to purchase a functioning compressor without having to purchase an air receiver. If the site already has a certified functional air receiver you simply install the Cube Air System next to the existing tank and connect the air discharge line. If the there is no existing tank or the existing tank is no longer certified or functional you can add a stand-alone tank to the system.
- Features
- 28 cfm @ 175 psi
- Cast iron reciprocating compressor pump
- Centrifugal unloader
- Disc and spring valves
- Discharge cooling manifold
- Easy open inline check valve
- Easy service belt guard
- Easy to read oil sight glass
- Easy service reciprocating pump platform
- Extended oil drain tube
- Industrial grade electric drive motor
- Inner stage cooler
- Minimal floor space foot print
- Multiplexing capability
- Rigid steel frame construction
- Self tensioning electric motor base
- Elite Model Features
- All basic compressor features
- Belt guard mounted air after cooler
- Low oil monitor
- High-temp stainless steel flex discharge line
- Vibration isolation mounting pads
- Freight pre-paid in standard freight area
- Package Options
- Class 1 Div 2 drive motor
- Coalescing filtration
- Desiccant air dryer
- Electronic automatic tank drain kit (shipped loose for installation on site) Kit includes: drain, ¼ pipe street 90 elbow, ¼ pipe 6 inch nipple
- Enrollment in factory extended service program
- Enrollment in factory extended warranty plan
- Multiplex control panel
- NEMA 4X electrical components
- NEMA 7 electrical components
- Particulate filtration
- Quick Install Kit Includes: 8ft electrical cord with plug, 6ft compressor to tank air line JIC fittings, 6ft tank to facility air line JIC fittings
- Reciprocating Pump Enclosure for noise reduction
- Refrigerated air dryer
- 30, 60, 80, 120, gallon storage tank (200 psi MWP, ASME, CRN)
| Model | Phase | Voltage | Length | Width | Height | Weight | Amp Draw 230 Volt |
|---|---|---|---|---|---|---|---|
| Q71-6 | 1 | 208-230 | 30 | 22 .25 | 40 | 450 | 32 |
| Q73-6 | 3 | 208-230/460-480 | 30 | 22 .25 | 40 | 450 | 18 |
| Add -E after model number to make Elite Model All dimensions are in inches, weight is in pounds, 480 volt amp draw were applicable is approximately ½ or 230 volt amp draw |
|||||||
