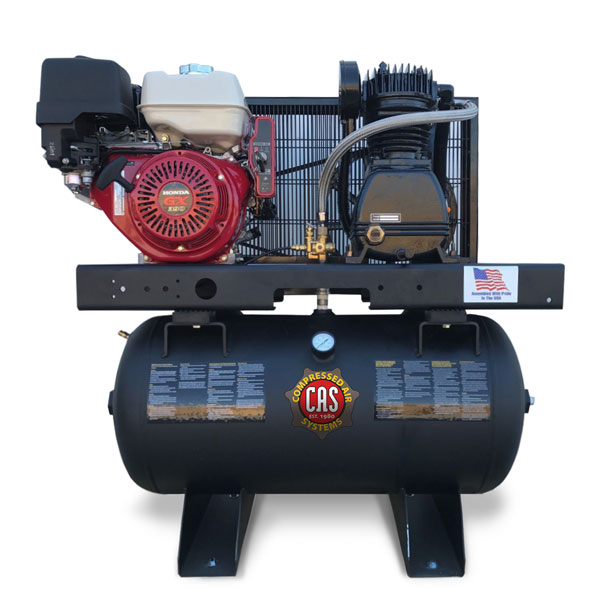

13-14 HP 18.4 cfm Engine Driven Compressor
CAS Industrial-duty gas and diesel compressors are designed for applications that require air on the go. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. The unloader is at your finger tips so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver for safety.
With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.
- Features
- 18.4 cfm @ 175 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Easy use pump oil drain
- Easy view oil sight glass
- Electric start drive engine
- Engine idle control for fuel savings
- Engine has recharging system
- Fork slot width mounting feet for more stable base and more maneuverability
- Inline pump for smooth operation
- Low rpm pump for lower operating temperature
- Operating pressures available up to 190 psi
- OSHA compliant belt guard
- Oversized pump flywheel for better pump cooling
- Pilot valve for continuous operation
- Solid cast iron pump
- Stainless steel flexible 1200° F rated air line
- Swedish steel reed valves
- Vibration isolation mount included
- 2-stage compressor pump
- 2-piece tank design for more mounting options of compressor system
- 30 Gallon ASME/CRN Air Receiver
- Options
- Battery mounted and wired
- Belt guard aftercooler
- Remote stsrting system (Kohler only)
| Model | HP | Tank | Drive Engine | Length | Width | Height | Weight | cfm @ 90 psi | cfm @ 175 psi |
|---|---|---|---|---|---|---|---|---|---|
| C130GEH33 | 13 | 30 Gallon | Honda GX390 | 42 | 22 | 42 | 395 | 24.3 | 18.4 |
| C140GEH33 | 14 | 30 Gallon | Kohler CH440 | 42 | 22 | 42 | 395 | 24.3 | 18.4 |
| Add -E after model number to make Elite Model. | |||||||||
