Rotary Screw

Open-Frame Compressors

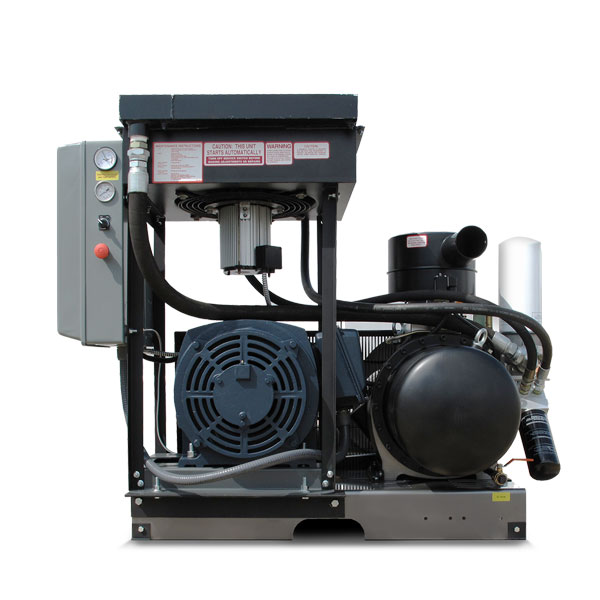

60 HP Rotary Screw

screw compressor icon

Compressed Air Systems rotary screw air compressors provide the highest levels of reliability, efficiency and productivity available. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality components, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.

  • Features
  • 245 cfm @ 125 psi
  • 225 cfm @ 150 psi
  • No Start-Up Kit Required
  • Optional 5-Year Pump Warranty
  • Airend manufactured with German rotary screw components
  • Air/oil cooler
  • ASME Powder coated air receiver
  • Easy to read and access gauges
  • Easy to remove bolt on oil cooler for cleaning
  • Extended oil drain with ball valve for easy service
  • Factory filled with premium synthetic fluid
  • Heavy-duty air filter
  • Omega profile rotors
  • Operating pressures from 100-190 psi available
  • Simplified operating controls, no complicated micro-processor
  • Single control solenoid operation
  • Spin-on oil filter
  • Spin-on separator
  • TEFC drive motor (3 phase only)
  • UL control components
  • Elite Model Features
  • Automatic tank drain
  • SMART contact controls
  • Vibration isolation pads
  • Tank discharge ball valve
  • Freight pre-paid in the 48 states & southern Canada
  • Elite Stainless Features
  • All Elite features
  • First oil and filter change
  • Stainless steel discharge lines
  • Stainless steel 12 inch install line
  • Tank discharge ball valve
60 HP  Rotary Screw
Model Phase Voltage Tank Length Width Height Amp Draw 230 Volt Amp Draw 480 Volt
RS603H120 3 208-230 120 Gallon Horizontal 60 48 60 144 72
RS603BM 3 208-230 N/A 42 48 48 144 74
Add -E after model number to make Elite Model. Basemount model available.
