Reciprocating Compressors

Commercial-Duty Electric

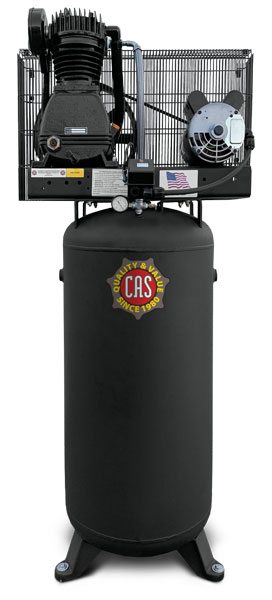

B51V63 Commercial-Duty Compressor

commercial duty icon portable icon

High value compressor for light commercial applications, pro-consumer or heavy home hobbyist. These units have a high cfm per HP ratio with a maximum 50% duty cycle. Designed to power smaller air tools, low volume nail guns, small grinders and cut off tools.

  • Features
  • 16 cfm @ 175 psi
  • 22 cfm @ 40 psi
  • No Start-Up Kit Required
  • Optional 5-Year Pump Warranty
  • ASME/CRN 200 psi MWP air receiver
  • Auto start/stop
  • Bearings on both end of the crank shaft
  • Cast iron two-stage compressor pump
  • Disk & spring valves
  • Heavy duty air filter
  • Motor overload protection built-in
  • Needle bearings and inserts on compression rod
  • Stainless steel flexible discharge line
  • Swedish steel valve components
  • UL/CSA electric control components
  • Options
  • Automatic tank drain
  • Belt guard cooler
  • NEMA7
  • TEFC
  • 3-phase drive motor & controls
b51v63
Model Phase Voltage Tank Length Width Height Amp Draw 230 Volt
B31V63 1 208-230 60 Gallon Vertical 30 25 74 18
B31V83 1 208-230 80 Gallon Vertical 30 25 74 18
B51V63 1 208-230 60 Gallon Vertical 30 25 74 22
B51V83 1 208-230 80 Gallon Vertical 32 26 74 22
